Use ES|QL in Kibana

Elastic Stack Serverless

You can use ES|QL in Kibana to query and aggregate your data, create visualizations, and set up alerts.

More specifically, ES|QL is a powerful tool in Kibana that can help you with specific solution use cases. For example:

• Observability: ES|QL makes it much easier to analyze metrics, logs and traces from a single query. Find performance issues fast by defining fields on the fly, enriching data with lookups, and using simultaneous query processing. Combining ES|QL with machine learning and AiOps can improve detection accuracy and use aggregated value thresholds.
• Security: Use ES|QL to retrieve important information for investigation by using lookups. Enrich data and create new fields on the go to gain valuable insight for faster decision-making and actions. For example, perform a lookup on an IP address to identify its geographical location, its association with known malicious entities, or whether it belongs to a known cloud service provider all from one search bar. ES|QL ensures more accurate alerts by incorporating aggregated values in detection rules.

This guide shows you how to use ES|QL in Kibana. To follow along with the queries, load the "Sample web logs" sample data set by selecting Sample Data from the Integrations page in Kibana, selecting Other sample data sets, and clicking Add data on the Sample web logs card.

ES|QL is enabled by default in Kibana. It can be disabled using the enableESQL setting from the Advanced Settings.

This will hide the ES|QL user interface from various applications. However, users will be able to access existing ES|QL artifacts like saved searches and visualizations.

To get started with ES|QL, go to Discover. Next, select Try ES|QL from the application menu bar.

After switching to ES|QL mode, the query bar shows your previous KQL or Lucene query converted into ES|QL. If the query was empty, it shows a sample query. For example:

from kibana_sample_data_logs | limit 10

Every query starts with a source command. In this query, the source command is FROM. FROM retrieves data from data streams, indices, or aliases. In this example, the data is retrieved from kibana_sample_data_logs.

A source command can be followed by one or more processing commands. In this query, the processing command is LIMIT. LIMIT limits the number of rows that are retrieved.

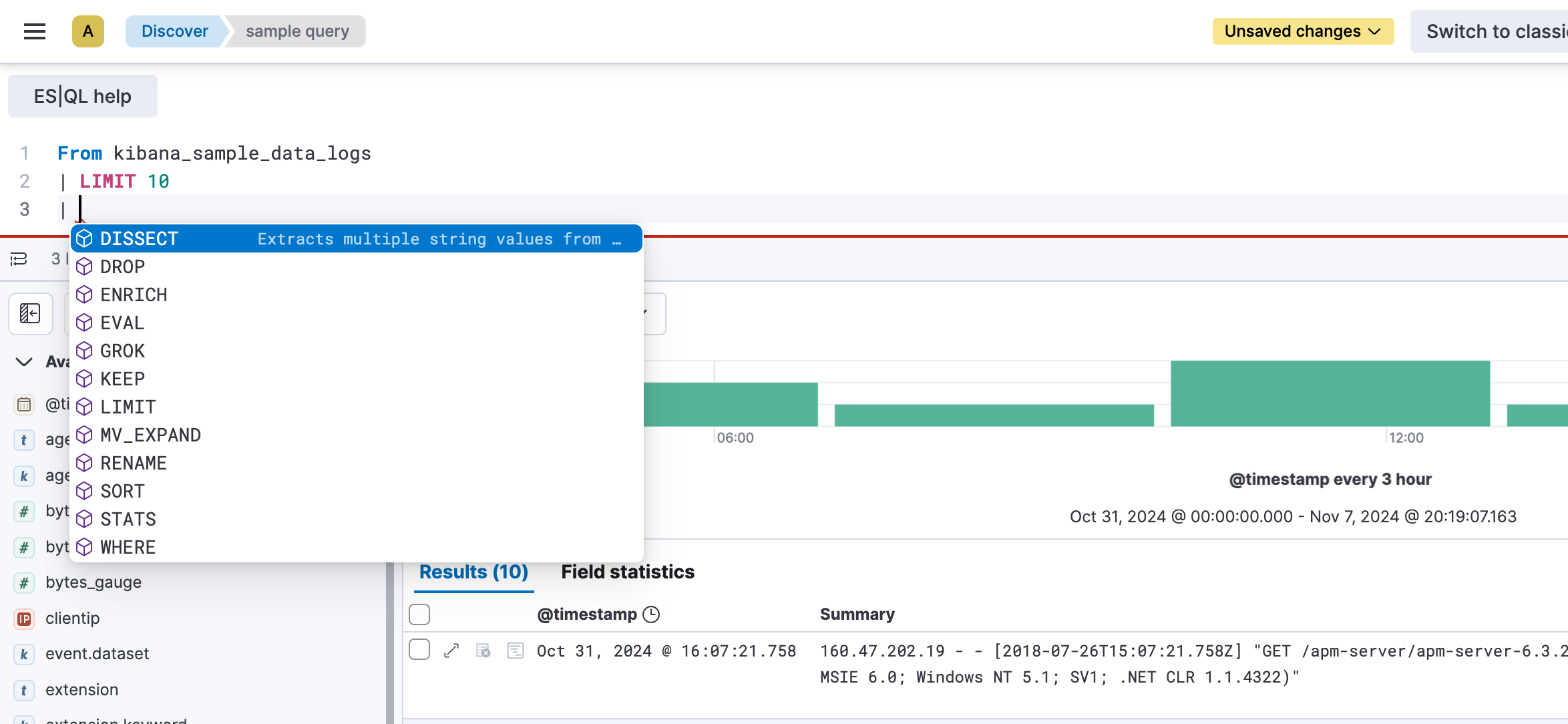

To make it easier to write queries, auto-complete offers suggestions with possible commands and functions:

×

FROM kibana_sample_data_logs | LIMIT 10

For readability, you can put each processing command on a new line. The following query is identical to the previous one:

FROM kibana_sample_data_logs
| LIMIT 10

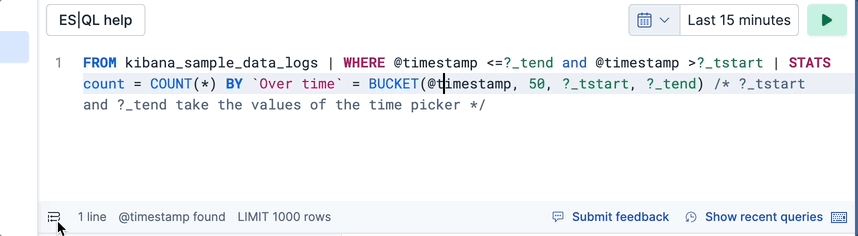

You can do that using the Add line breaks on pipes button from the query editor’s footer.

×

You can adjust the editor’s height by dragging its bottom border to your liking.

A query may result in warnings, for example when querying an unsupported field type. When that happens, a warning symbol is shown in the query bar. To see the detailed warning, expand the query bar, and click warnings.

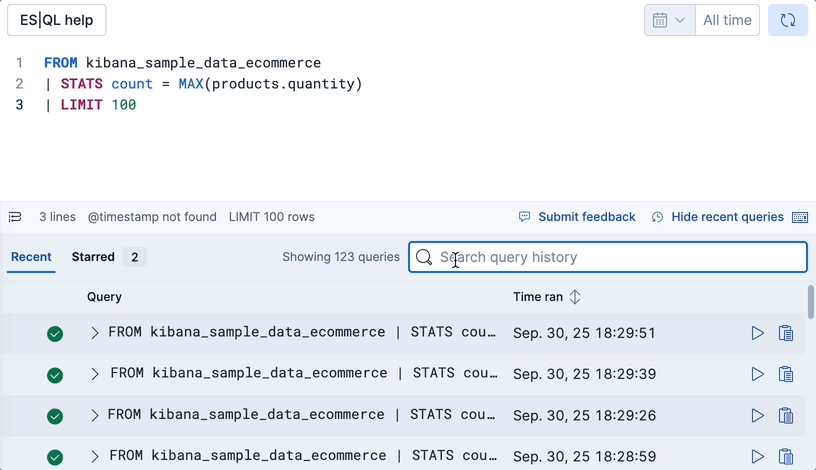

You can reuse your recent ES|QL queries in the query bar. In the query bar, click Show recent queries.

You can then scroll through your recent queries:

×

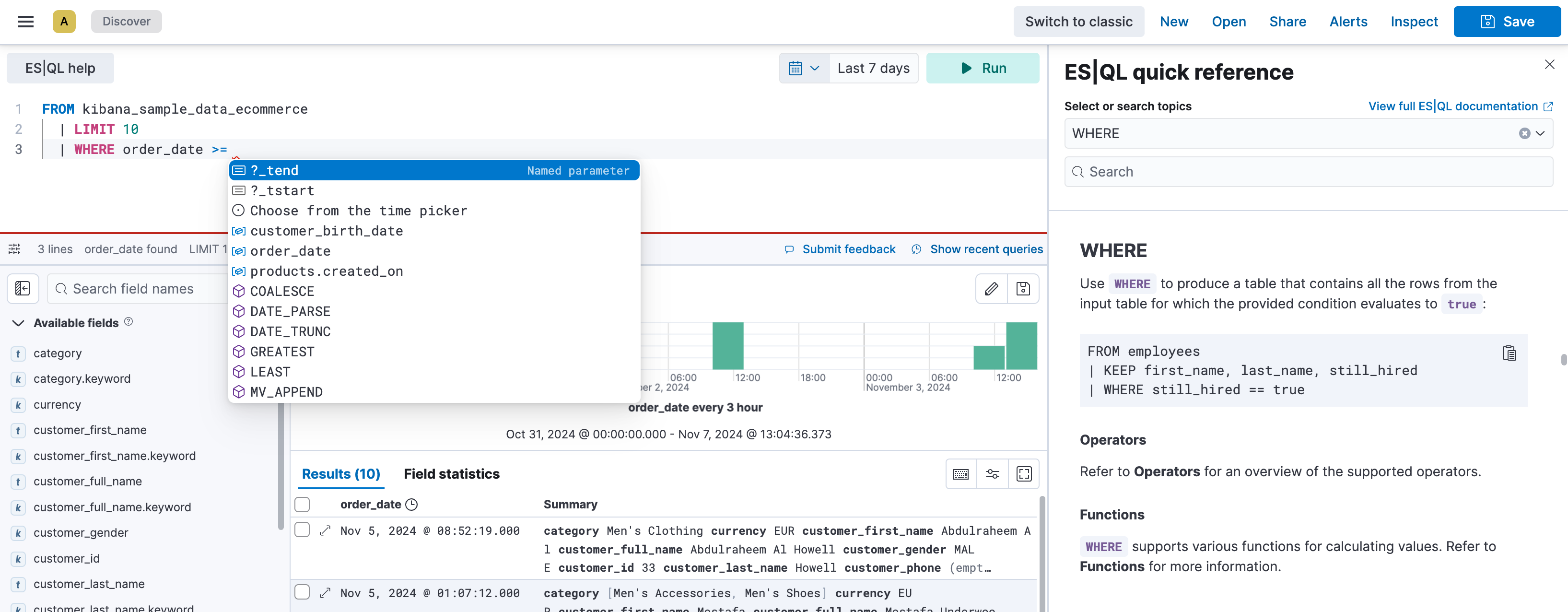

ES|QL features in-app help and suggestions, so you can get started faster and don’t have to leave the application to check syntax.

From the query history, you can mark some queries as favorite to find and access them faster later.

In the query bar, click Show recent queries.

From the Recent tab, you can star any queries you want.

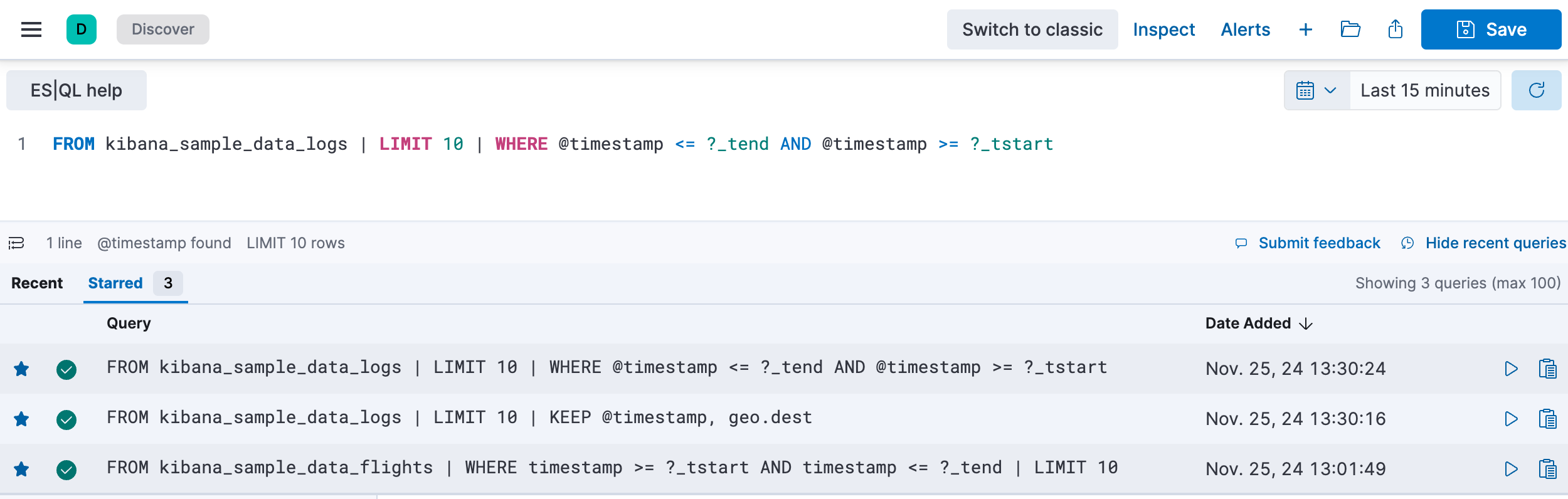

In the Starred tab, find all the queries you have previously starred.

×

For the example query, the results table shows 10 rows. Omitting the LIMIT command, the results table defaults to up to 1000 rows. Using LIMIT, you can increase the limit to up to 10,000 rows.

Each row shows two columns for the example query: a column with the @timestamp field and a column with the full document. To display specific fields from the documents, use the KEEP command:

FROM kibana_sample_data_logs
| KEEP @timestamp, bytes, geo.dest

To display all fields as separate columns, use KEEP *:

FROM kibana_sample_data_logs
| KEEP *

To sort on one of the columns, click the column name you want to sort on and select the sort order. Note that this performs client-side sorting. It only sorts the rows that were retrieved by the query, which may not be the full dataset because of the (implicit) limit. To sort the full data set, use the SORT command:

FROM kibana_sample_data_logs
| KEEP @timestamp, bytes, geo.dest
| SORT bytes DESC

To display data within a specified time range, you can use the standard time filter, custom time parameters, or a WHERE command.

The standard time filter is enabled when the indices you’re querying have a field named @timestamp.

If your indices do not have a field named @timestamp, you can use the ?_tstart and ?_tend parameters to specify a time range. These parameters work with any timestamp field and automatically sync with the time filter.

FROM my_index
| WHERE custom_timestamp >= ?_tstart AND custom_timestamp < ?_tend

You can also use the ?_tstart and ?_tend parameters with the BUCKET function to create auto-incrementing time buckets in ES|QL visualizations. For example:

FROM kibana_sample_data_logs
| STATS average_bytes = AVG(bytes) BY BUCKET(@timestamp, 50, ?_tstart, ?_tend)

This example uses 50 buckets, which is the maximum number of buckets.

You can also limit the time range using the WHERE command and the NOW function. For example, if the timestamp field is called timestamp, to query the last 15 minutes of data:

FROM kibana_sample_data_logs
| WHERE timestamp > NOW() - 15minutes

Between the query bar and the results table, Discover shows a date histogram visualization. By default, if the indices you’re querying do not contain a @timestamp field, the histogram is not shown. But you can use a custom time field with the ?_tstart and ?_tend parameters to enable it.

The visualization adapts to the query. A query’s nature determines the type of visualization. For example, this query aggregates the total number of bytes per destination country:

FROM kibana_sample_data_logs
| STATS total_bytes = SUM(bytes) BY geo.dest
| SORT total_bytes DESC
| LIMIT 3

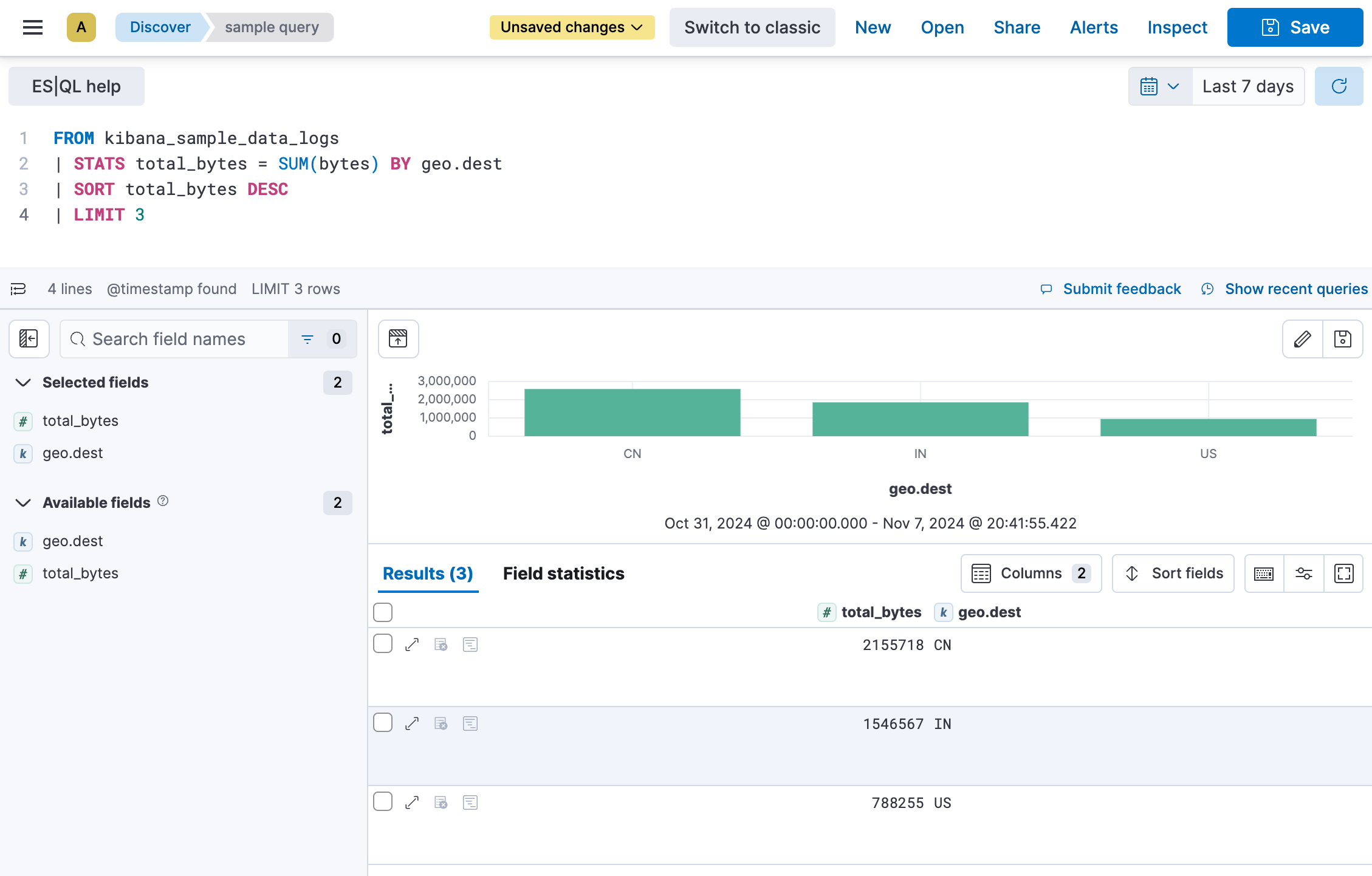

The resulting visualization is a bar chart showing the top 3 countries:

×

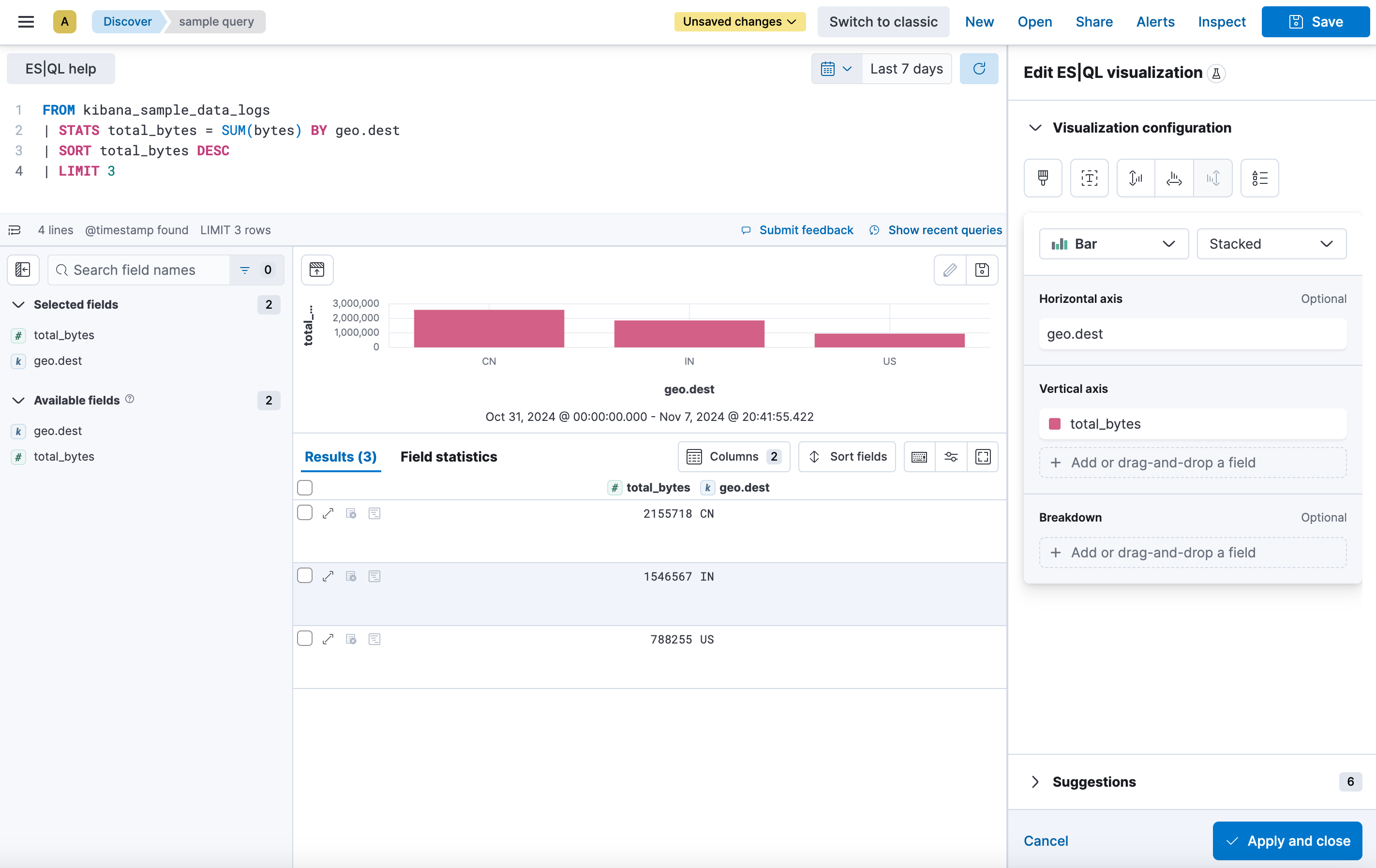

To make changes to the visualization, like changing the visualization type, axes and colors, click the pencil button (). This opens an in-line editor:

×

You can save the visualization to a new or existing dashboard by clicking the save button (). Once saved to a dashboard, you’ll be taken to the Dashboards page. You can continue to make changes to the visualization. Click the options button in the top-right () and select Edit ES|QL visualization to open the in-line editor:

×

You can use ES|QL queries to create panels on your dashboards. To add a panel to a dashboard, under Dashboards, click the Add panel button and select ES|QL.

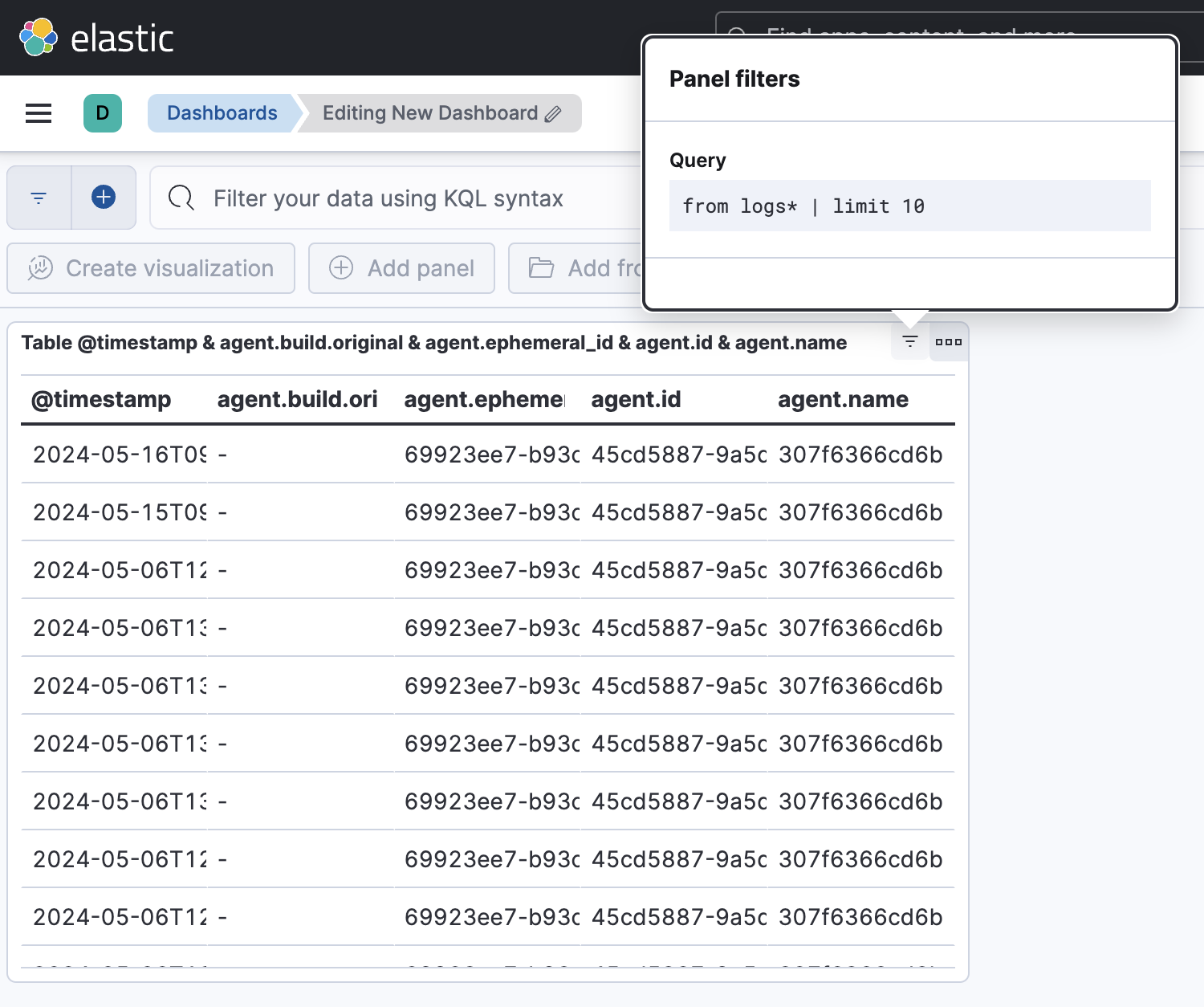

Check the ES|QL query by clicking the Panel filters button ():

×

You can also edit the ES|QL visualization from here. Click the options button in the top-right () and select Edit ESQL visualization to open the in-line editor.

×

You can also Add dashboard controls from your ES|QL visualization's query

The ES|QL ENRICH command enables you to enrich your query dataset with fields from another dataset. Before you can use ENRICH, you need to create and execute an enrich policy. If a policy exists, it will be suggested by auto-complete. If not, click Click to create to create one.

×

Next, you can enter a policy name, the policy type, source indices, and optionally a query:

×

Click Next to select the match field and enrich fields:

×

Finally, click Create and execute.

Now, you can use the enrich policy in an ES|QL query:

FROM kibana_sample_data_logs
| STATS total_bytes = SUM(bytes) BY geo.dest
| SORT total_bytes DESC
| LIMIT 3
| ENRICH countries

You can use ES|QL queries to create alerts. From Discover, click Alerts and select Create search threshold rule. This opens a panel that enables you to create a rule using an ES|QL query. Next, you can test the query, add a connector, and save the rule.

×

• The user interface to filter data is not enabled when Discover is in ES|QL mode. To filter data, write a query that uses the WHERE command instead.
• Discover shows no more than 10,000 rows. This limit only applies to the number of rows that are retrieved by the query and displayed in Discover. Queries and aggregations run on the full data set.
• Discover shows no more than 50 columns. If a query returns more than 50 columns, Discover only shows the first 50.
• CSV export from Discover shows no more than 10,000 rows. This limit only applies to the number of rows that are retrieved by the query and displayed in Discover. Queries and aggregations run on the full data set.
• Querying many indices at once without any filters can cause an error in kibana which looks like [esql] > Unexpected error from Elasticsearch: The content length (536885793) is bigger than the maximum allowed string (536870888). The response from ES|QL is too long. Use DROP or KEEP to limit the number of fields returned.
