Quick start with Elastic Cloud

edit

The easiest way to get started with Elastic APM is by using our hosted Elasticsearch Service on Elastic Cloud. The Elasticsearch Service is available on AWS, GCP, and Azure. The Elasticsearch Service provisions the following components of the Elastic Stack:

  • Elasticsearch — A highly scalable free and open full-text search and analytics engine.
  • Kibana — An analytics and visualization platform designed to work with Elasticsearch.
  • Integrations Server — A combined APM Server and Fleet-managed Elastic Agent.

    • APM Server — An application that receives, processes, and validates performance data from your APM agents.
    • Fleet-managed Elastic Agent — A server that runs Fleet Server and provides a control plane for easily configuring and updating APM and other integrations.

Don’t worry—​in order to get started, you don’t need to understand how all of these pieces work together! When you use our hosted Elasticsearch Service, simply spin-up your instance and point your APM agents towards it.

What will I learn in this guide?

edit

This guide describes how to:

  • Collect Application Performance Monitoring (APM) data
  • Send APM data to the Elastic Stack
  • Explore and visualize the data in real-time

For feedback and questions, please contact us in the discuss forum.

Prerequisites

edit

To follow the steps in this guide, you need an Elastic Stack deployment that includes:

  • Elasticsearch for storing and searching data
  • Kibana for visualizing and managing data
  • Kibana user with All privileges on Fleet and Integrations. Since many Integrations assets are shared across spaces, users need the Kibana privileges in all spaces.
  • Integrations Server (included by default in every Elasticsearch Service deployment)

To get started quickly, spin up a deployment of our hosted Elasticsearch Service. The Elasticsearch Service is available on AWS, GCP, and Azure. Try it out for free.

Step 1: Configure the APM integration

edit

Elastic Cloud runs a hosted version of Integrations Server that includes the APM integration.

  1. In Kibana, navigate to Fleet > Agent policies and select the Elastic Cloud agent policy. This is the default agent policy for Elastic Agents hosted on Elastic Cloud.

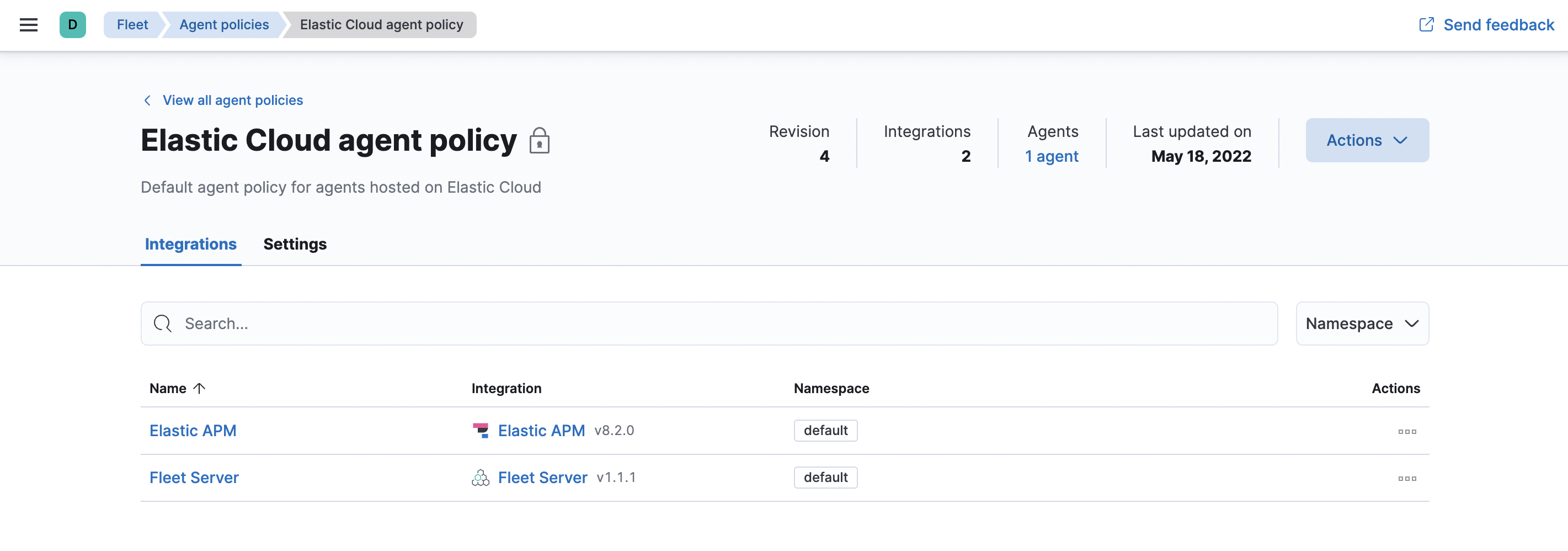

    Elastic Cloud agent policy
  2. Next to Elastic APM in the Actions column, select Edit integration to configure the APM integration.

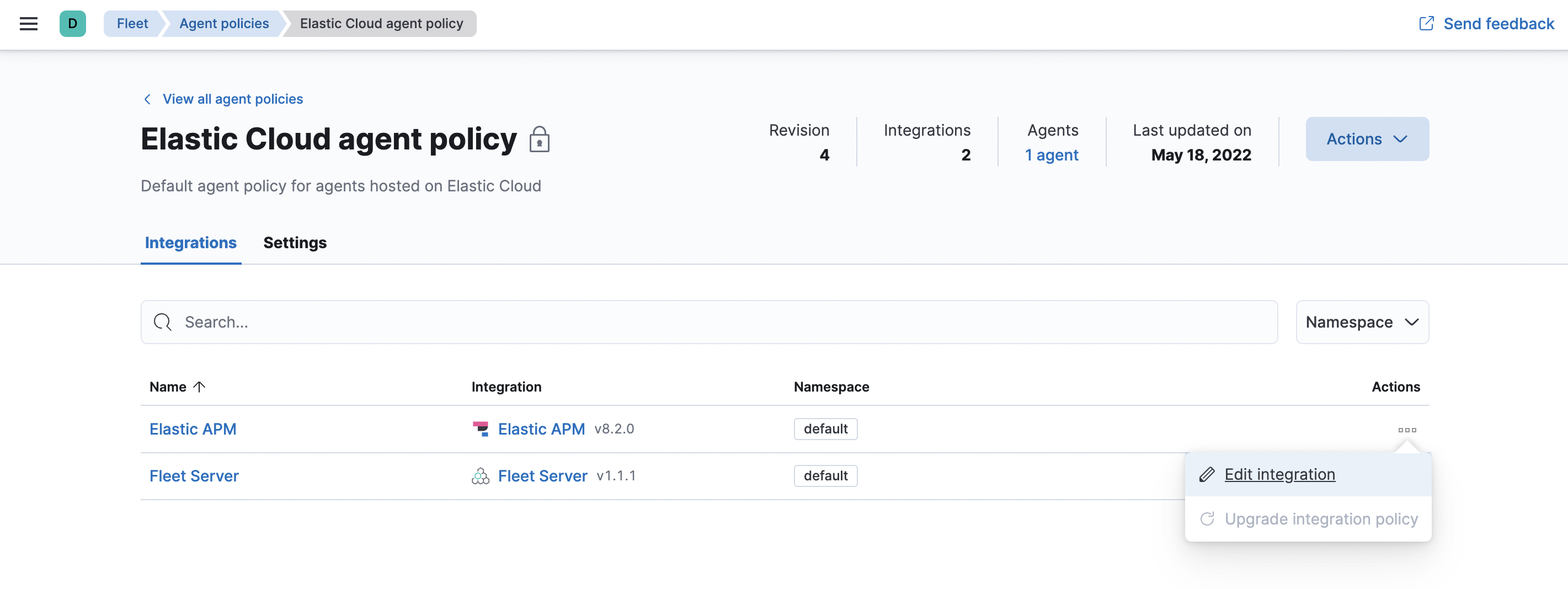

    Edit the APM integration
  3. Make a note of the predefined URL that the APM Server is listening on—​you’ll need this in the next step.
  4. If you made any changes to your configuration, click save and continue.

Step 2: Install APM agents

edit

APM agents are written in the same language as your service. To monitor a new service, you must install the agent and configure it with a service name, APM Server host, and Secret token.

  • Service name: The APM integration maps an instrumented service’s name–defined in each APM agent’s configuration– to the index that its data is stored in Elasticsearch. Service names are case-insensitive and must be unique. For example, you cannot have a service named Foo and another named foo. Special characters will be removed from service names and replaced with underscores (_).
  • APM Server URL: The host and port that APM Server listens for events on. This should match the host and port defined when setting up the APM integration.
  • Secret token: Authentication method for APM agent and APM Server communication. This should match the secret token defined when setting up the APM integration.

You can edit your APM integration settings if you need to change the APM Server URL or secret token to match your APM agents.

Download the APM agent

Download the agent jar from Maven Central. Do not add the agent as a dependency to your application.

Start your application with the javaagent flag

Add the -javaagent flag and configure the agent with system properties.

  • Set required service name
  • Set custom APM Server URL (default: http://localhost:8200)
  • Set the base package of your application
java -javaagent:/path/to/elastic-apm-agent-<version>.jar \
     -Delastic.apm.service_name=my-application \
     -Delastic.apm.server_urls=http://localhost:8200 \
     -Delastic.apm.secret_token= \
     -Delastic.apm.application_packages=org.example \
     -jar my-application.jar

Learn more in the agent reference

Step 3: View your data

edit

Back in Kibana, under Observability, select APM. You should see application performance monitoring data flowing into the Elastic Stack!

The built-in apm_user role is not compatible with the APM integration as it only provides read access to apm-* indices. For a list of indices users need access to, refer to APM data streams

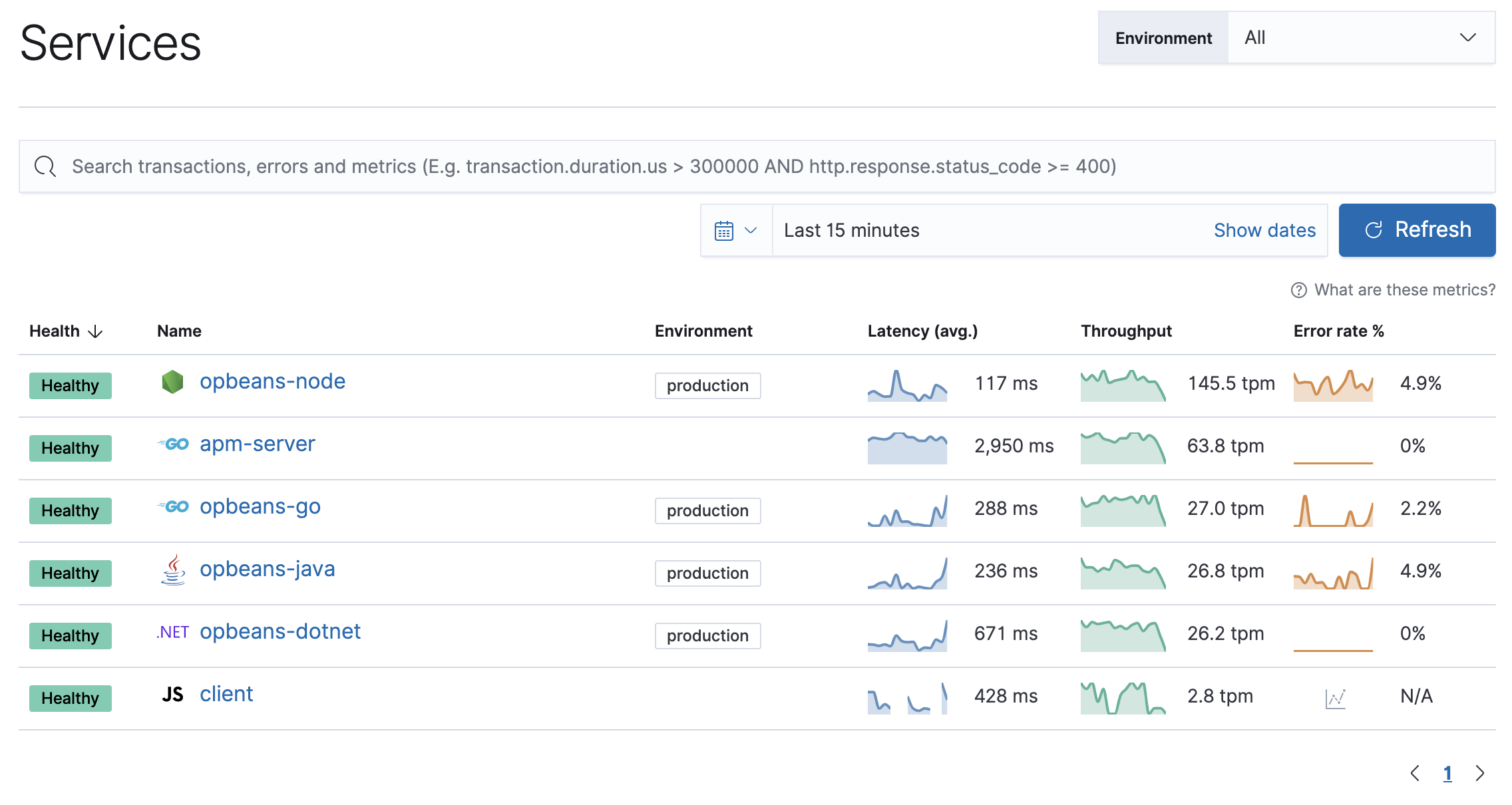

APM app with data

Not seeing any data? Review our list of common problems for helpful tips.

What’s next?

edit
  • Now that data is streaming into the Elastic Stack, take your investigation to a deeper level! Use Elastic Observability to unify your logs, metrics, uptime, and application performance data.
  • Want to protect your endpoints from security threats? Try Elastic Security. Adding endpoint protection is just another integration that you add to the agent policy!
  • Are your eyes bleary from staring at a wall of screens? Create alerts and find out about problems while sipping your favorite beverage poolside.
  • Want Elastic to do the heavy lifting? Use machine learning to detect anomalies.
  • Got everything working like you want it? Roll out your agent policies to other hosts by deploying Elastic Agents across your infrastructure!
